A Complete Guide to VR Motion Capture Blender: A Step-by-Step Guide

When it comes to bringing motion capture (mocap) data to life, VR motion capture Blender is one of the best free and open-source tools available. If you’re interested in using VR motion capture to animate characters, you need to understand how Blender handles mocap files and how to make the most of its features.

VR Motion Capture Features on Blender

Unlike high-end mocap software that requires expensive setups, Blender gives you full control over how you import, edit, and apply motion capture data.

• You can import motion capture files from VR systems in formats like BVH (BioVision Hierarchy) and FBX (Filmbox). These files store recorded movement data from your VR motion capture session.
• Once imported, you can apply the motion data to any 3D character rig in Blender, whether it’s a simple humanoid or a complex animated creature.
• You can fine-tune and clean the mocap animation using Blender’s animation tools, such as the Graph Editor and Non-Linear Animation (NLA) Editor.

Key Features in Blender for Motion Capture

Now, let’s talk about the essential Blender tools and features that will help you work with mocap data effectively.

Importing and Editing Motion Capture Data:

• Blender allows you to import BVH and FBX files directly into a scene.
• You can assign the mocap animation to any character skeleton or armature in Blender.
• The Graph Editor helps you refine movements by adjusting keyframes and curves.

Blender’s Rigging System:

• The Armature system lets you build a skeleton that controls a 3D character.
• Inverse Kinematics (IK) and Forward Kinematics (FK) allow you to refine how the limbs move.
• You can retarget motion capture data to different rigs, ensuring that the animation fits your custom models.

Non-Linear Animation (NLA) Editor:

• The NLA Editor in Blender lets you blend multiple mocap clips together.
• You can layer animations, for example, by adding a hand wave on top of a walking motion.
• This feature helps you create complex, natural movements from raw mocap data.

Add-ons to Enhance Blender’s Mocap Capabilities

While Blender has great built-in tools, you can install add-ons to improve your motion capture workflow. Here are a few that I recommend:

• Rokoko Studio Live for Blender: Lets you stream real-time motion capture data from a VR setup into Blender.
• Auto-Rig Pro: A powerful add-on that helps you retarget mocap data to your custom characters easily.
• Blender VRMocap: Specifically designed for handling VR motion capture data inside Blender.

Now that you have a solid understanding of how Blender handles motion capture, the next step is setting up your VR motion capture system to start recording animations. I’ll guide you through that process in the next section!

>>> Read more: Motion Capture Animation Blender: A Complete Guide

IV. Setting Up VR Motion Capture for Blender

I’ll walk you through everything step by step, from choosing the right hardware, to installing software, and making sure everything works smoothly in Blender.

Step 1: Choosing the Right VR Mocap Hardware

Before we dive into the setup, you need to pick the right VR motion capture hardware. Your choice depends on budget, tracking accuracy, and compatibility with Blender. Let’s go over some of the most popular options:

VR Headsets with Controllers (Basic Mocap Setup)

If you already own a VR headset, you can use it along with hand controllers to capture basic movements. This is a low-cost way to get started with mocap, but it doesn’t offer full-body tracking.

My recommended headsets:

• Meta Quest 2 / 3 (with SteamVR tracking)
• HTC Vive / Vive Pro
• Valve Index

Pros: Easy to set up, great for upper-body animation.

Cons: No lower-body tracking unless you add extra sensors.

>>> Read more: FX and animation studios increasing favor for virtual production and workstations

Full-Body Tracking Systems (Advanced Mocap Setup)

If you want full-body motion capture, you’ll need extra body trackers that can capture leg, hip, and torso movement. Here are some popular options:

• HTC Vive Trackers: The gold standard for SteamVR-based full-body tracking.
• SlimeVR: A budget-friendly, wireless solution for full-body tracking.
• Perception Neuron 3: A full IMU-based motion capture suit (doesn’t require external cameras).

Pros: Captures full-body movement, including legs and feet.
Cons: More expensive and requires more setup time.

>>> Read more: How To Build A Blender Real Time Animation Pipeline

Hybrid Motion Capture Solutions

Some systems combine VR and AI-based motion capture to fill in missing tracking points. These don’t require physical trackers but use computer vision and deep learning to estimate movement.

• Move.AI (AI-based mocap from video)
• DeepMotion (AI-powered body tracking)

Pros: No need for extra hardware, great for non-VR setups.
Cons: May not be as accurate as real-time trackers.

>>>Read more: Important things to know when implementing Motion Capture with a budget

Step 2: Installing the Necessary Software

Once you have your hardware ready, you need to install and configure the software to capture motion data and bring it into Blender.

Installing SteamVR (For VR-Based Mocap)

If you’re using HTC Vive, Valve Index, or Meta Quest (via PC link), you’ll need SteamVR for tracking.

1. Download and install SteamVR from Steam.
2. Launch SteamVR and make sure your headset and controllers are detected.
3. If using Vive Trackers, pair them in SteamVR settings under “Manage Vive Trackers.”

Setting Up VR Mocap Software

Depending on your mocap system, you may need additional software:

• Vive Trackers: Use SlimeVR software or Driver4VR for better calibration.
• Perception Neuron: Use Axis Neuron software to record and export mocap data.
• Rokoko Smartsuit: Use Rokoko Studio to stream motion capture directly into Blender.

Installing Blender Add-ons for Mocap

To bring motion capture data into Blender, you need motion capture add-ons. Here are a few must-have ones:

• Mocap Import Add-on (Built-in)
• Rokoko Studio Live for Blender
• VRMocap Add-on

To install add-ons in Blender:

1. Go to Edit → Preferences → Add-ons
2. Click Install, select the .zip file of the add-on, and enable it.

You’re now ready to import motion capture data!

Step 3: Setting Up Your VR Space for Mocap

Before recording, you need to make sure your VR tracking works flawlessly. Here’s how you can optimize your tracking space for the best results:

• Clear the area: Make sure you have at least 2×2 meters of open space.
• Avoid reflective surfaces: Mirrors and glass can confuse the sensors.
• Use proper lighting: If using optical tracking, ensure even lighting.
• Calibrate trackers properly: If using Vive Trackers, set them to the correct body parts.

Pro Tip: If your tracking drifts or loses accuracy, recalibrate your VR system before each session.

Step 4: Recording Motion Capture Data

Now, let’s capture your movement using your VR setup! Here’s what you need to do:

Start a New Recording Session

1. Launch SteamVR and ensure all trackers/controllers are detected.
2. Open your motion capture software (e.g., Axis Neuron, Rokoko Studio, SlimeVR).
3. Calibrate your body posture (Stand in a T-pose or A-pose for initial calibration).

Capture and Export Mocap Data

Once everything is set up, record your movements and save the file:

• For BVH (BioVision Hierarchy) files: Best for Blender’s animation tools.
• For FBX (Filmbox) files: Ideal if you plan to use your animations in game engines like Unity or Unreal.

Common Issues & Troubleshooting

I know how frustrating it can be when your VR motion capture setup doesn’t work as expected. Even with the best equipment, tracking errors, jittering, and misalignment can mess up your animations.

Motion Jittering (Shaky or Unstable Movement)

The Problem:

You record your movements, but when you import the data into Blender, the animation looks shaky, unstable, or unnatural. This usually happens when:

• The VR trackers aren’t positioned correctly.
• The sensors lose tracking temporarily during recording.
• There’s interference from nearby objects (e.g., mirrors, bright lights).

The Fix:

• Check Your VR Space: Make sure your play area is clear of obstacles and reflections.
• Increase Smoothing in Blender: After importing mocap data, use the Graph Editor to apply smoothing to shaky keyframes.
• Try Filtering Motion Noise: If your mocap software has a noise reduction option, enable it before exporting the file.
• Use a Mocap Cleanup Add-on: Add-ons like Rokoko Studio Live allow you to filter and clean motion capture data before importing it into Blender.

Calibration Drift (Body Parts Misaligned Over Time)

The Problem:

After recording, you notice that your character slowly drifts away from its original position, or certain body parts become misaligned over time. This is often caused by:

• Poor initial calibration before recording.
• VR trackers losing sync due to WiFi interference.
• Magnetic or reflective objects messing with the sensors.

The Fix:

• Recalibrate Before Every Session: Always reset your VR trackers and recalibrate your body (T-pose/A-pose) before recording.
• Keep Trackers Within Range: If using wireless trackers, ensure they’re close enough to the receiver for consistent tracking.
• Use a Fixed Reference Point in Blender: If your mocap data drifts, manually adjust the root bone in Blender to keep the character grounded.

Foot Sliding (Feet Not Staying in Place)

The Problem:

Your character’s feet don’t stay in one place when they’re supposed to be standing still. Instead, they slide across the floor, ruining the realism of your animation.

The Fix:

• Use Inverse Kinematics (IK) Constraints: In Blender, apply IK constraints to the feet bones so they stay locked to the ground.
• Manually Adjust Foot Placement: In the Graph Editor, tweak the foot keyframes so they stay at a fixed height when needed.
• Enable Root Motion in Blender: If you’re exporting to a game engine, enable root motion to control character movement properly.

VR Trackers Not Detecting Movement Properly

The Problem:

Your VR headset or body trackers aren’t capturing movement correctly, causing glitches like:

• Body parts not responding to real-life movement.
• Sudden position jumps or missing animation frames.
• Delayed response when moving in VR.

The Fix:

• Re-Pair Your VR Trackers: If using HTC Vive Trackers, go to SteamVR settings and re-pair each tracker manually.
• Reduce WiFi Interference: Make sure your VR headset and trackers are on a clear WiFi channel to avoid delays.
• Check Your PC’s Performance: If your CPU or GPU is overloaded, mocap data might be dropping frames. Close other programs and lower VR settings if needed.
• Try a Different Mocap Software: Some VR mocap solutions handle tracking better than others. Try Rokoko Studio, SlimeVR, or Perception Neuron if you’re experiencing issues.

Arm and Leg Twisting (Weird Bone Rotations)

The Problem:

Your character’s arms, legs, or fingers twist unnaturally when retargeting mocap data in Blender. This happens because:

• Your VR mocap system records rotation data differently from Blender’s rig.
• The character rig’s bone orientation doesn’t match the mocap skeleton.
• The motion capture data is flipped due to incorrect axis settings.

The Fix:

• Check Bone Orientation in Blender: In Pose Mode, enable X-Axis Mirror to ensure both arms/legs move correctly.
• Apply Rotation Corrections in Retargeting: When importing mocap data, adjust the bone rotation settings so they match Blender’s coordinate system.
• Manually Adjust Keyframes: If twisting still happens, you can manually adjust the bone rotation curves in the Graph Editor.

Character Moving Too Fast or Too Slow

The Problem:

After applying mocap data, the animation looks unnatural either too fast or too slow compared to real-life movement.

The Fix:

• Adjust Playback Speed in Blender: If the animation is too fast, scale the keyframes in the Timeline to slow it down.
• Check Frame Rate (FPS) Settings: Make sure your mocap data matches Blender’s frame rate (usually 24 or 30 FPS).
• Normalize Keyframes in the NLA Editor: If blending multiple animations, use the Non-Linear Animation (NLA) Editor to smooth out timing issues.

I know motion capture can be tricky, but once you get the hang of fixing tracking issues, adjusting keyframes, and smoothing animations, you’ll be able to create realistic character movement in Blender.

Importing & Retargeting Mocap Data in Blender

Once you’ve recorded your VR motion capture data, the next step is to import it into Blender and apply it to your character rig. This process involves importing, retargeting, fixing errors, and refining the animation. Let me walk you through it!

Importing Motion Capture Data

Most mocap systems export files in BVH or FBX format, both supported by Blender.

Steps to Import BVH or FBX:

1. Open Blender and create a new scene.
2. Go to File → Import → BVH or FBX and select your mocap file.
3. The mocap skeleton appears in the 3D viewport with keyframed motion data.

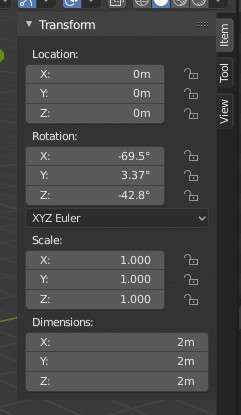

Tip: If the scale is off, adjust it in the Transform panel.

Retargeting Mocap Data to Your Character

Your mocap skeleton won’t match your character automatically; you need to retarget the motion data.

Using Auto-Rig Pro (Easy Method):

1. Install Auto-Rig Pro and go to Retargeting → Add Source Armature (your mocap rig).
2. Select your character rig as the Target.
3. Click “Auto-Retarget” to transfer motion automatically.

Tip: Manually assign bones if Auto-Rig doesn’t map them correctly.

Manual Retargeting (More Control):

1. Align the mocap skeleton with your character rig.
2. Parent the character to the mocap rig (Ctrl + P → With Automatic Weights).
3. Apply Copy Rotation constraints to match mocap movements.
4. Adjust IK constraints for better control of arms and legs.

Fixing Common Retargeting Issues

Even after retargeting, animations may need adjustments.

• Foot Sliding → Use Inverse Kinematics (IK) constraints to keep feet locked in place.
• Arm Twisting → Adjust bone rotation constraints in Pose Mode.
• Character Drifting → Keep the root bone stationary or reset its position.

Tip: Use the Graph Editor to clean up shaky or unnatural movements.

Refining Mocap Animation

Once retargeted, refine the animation to make it more natural.

• Select animation curves in Graph Editor and apply Smooth Keys (Shift + S).
• Delete unnecessary keyframes to simplify motion.

• Convert the mocap action into an NLA strip for blending multiple animations.
• Add hand gestures and facial expressions manually using Shape Keys.

Exporting Your Animated Character

After refining, export your animation for use in games, VR, or rendering.

Exporting for Game Engines (Unity/Unreal Engine):

1. Select your character and go to File → Export → FBX.
2. Enable “Bake Animation” to include all keyframes.
3. Import the FBX into Unity/Unreal Engine.

Exporting for Cinematic Rendering: Render your animation using Cycles or Eevee after setting up materials and lights.

Conclusion

With VR motion capture in Blender, you can create realistic animations for games, films, and virtual productions. While mocap speeds up animation, refining it using Graph Editor, NLA Editor, and IK constraints is key for smooth results. Keep experimenting, refining, and integrating mocap into your projects. Need help with retargeting or exporting? Let me know as I’d love to assist!

Source:
